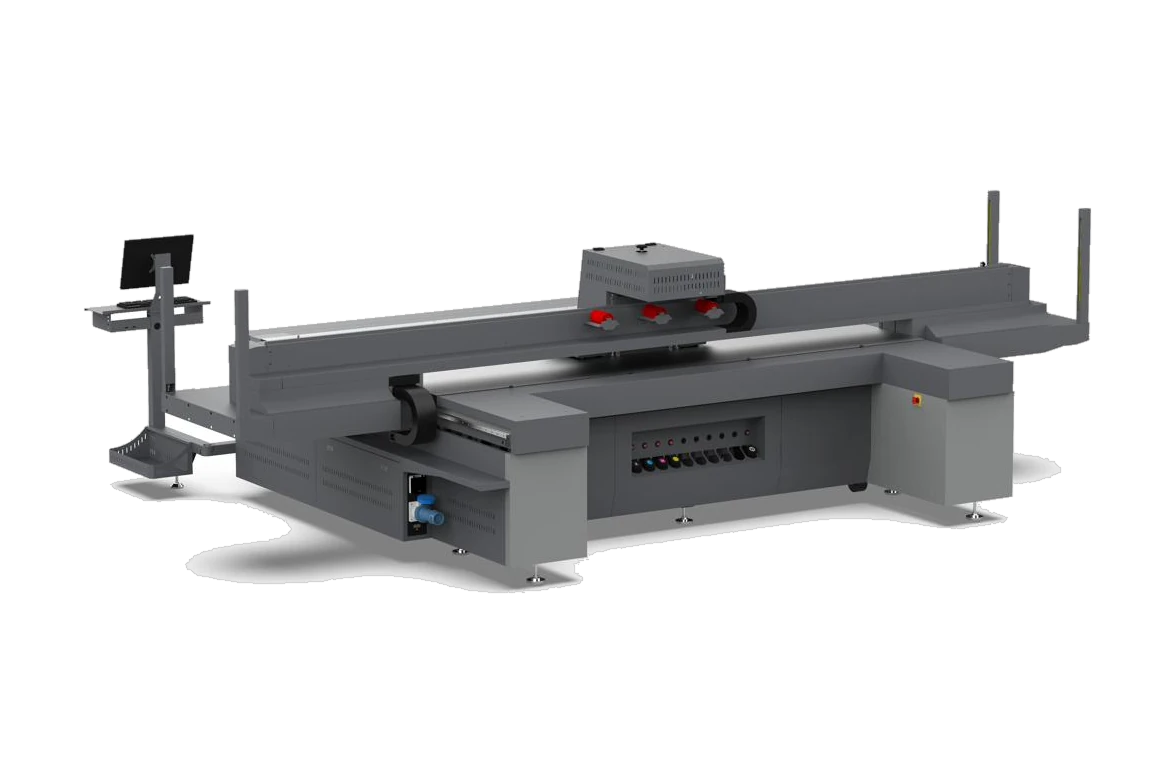

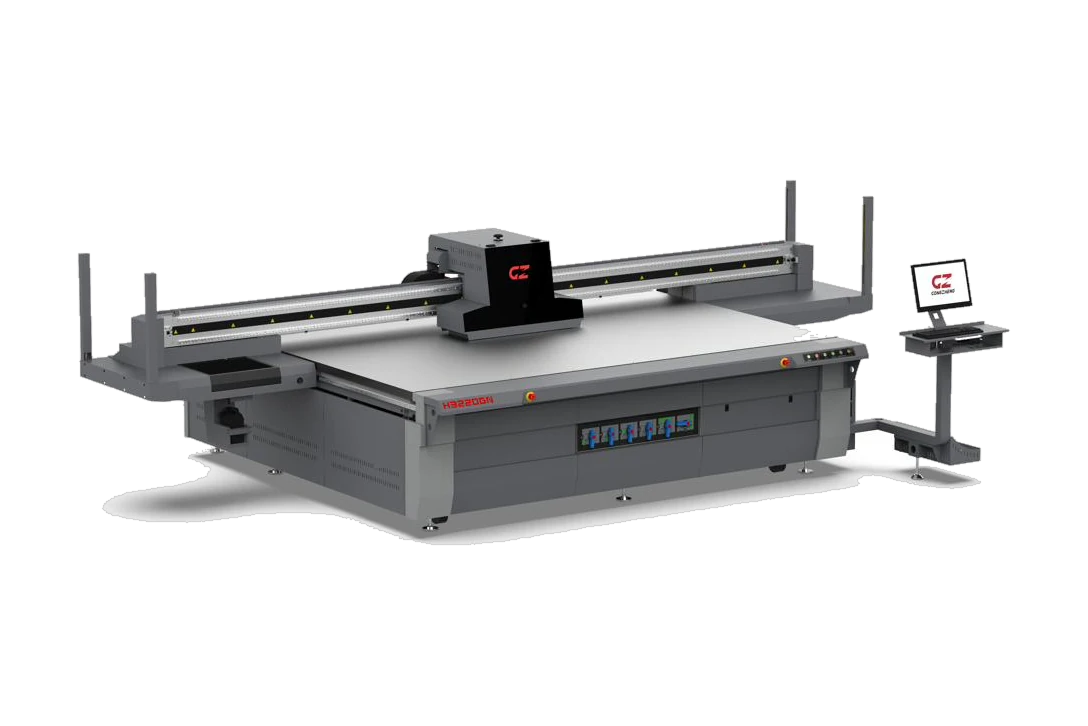

H3220GN - Industrial 3200x2050 mm UV Flatbed Printer for Rigid Materials

H3220GN uses 4–18 Ricoh Gen6 printheads, depending on configuration. These are industrial printheads for UV printing on rigid materials. This is especially important for a UV flatbed printer, because printing is not done on a standard roll, but on many different substrates: acrylic, PVC, glass, metal, wood, composite, ceramic and finished objects. The advantage of Ricoh Gen6 is stable operation with UV ink, industrial reliability, small droplet capability and good detail. In flatbed printing, printheads are only one part of the result. The vacuum table, correct print height, adhesion testing, primer for difficult materials and proper surface preparation are also important.

H3220GN can print on acrylic, PVC board, foam board, aluminium, metal, glass, ceramic, wood, MDF, leather and other suitable rigid materials. However, in UV flatbed printing, listing materials is not enough. Each material should be tested for adhesion, scratch resistance, moisture, cleaning and real usage conditions. Glass, metal, some types of acrylic and painted surfaces may require primer. For large sheets, the vacuum table is important to keep the material stable during printing. For finished objects, height, flatness, head collision risk and correct fixation must be checked.

Media thickness up to 100 mm means the printer can work not only with sheet materials, but also with some finished products, thicker objects and panels. This expands production possibilities: signs, interior panels, promotional products, decorative elements, packaging, wood, acrylic blocks and other objects. However, thickness is not the only factor. The surface must be reasonably flat, the object must be fixed securely and the print height must be set correctly. For non-standard objects, a test is recommended before serial production.

Maximum speed is usually specified for fast modes and does not always represent daily production conditions. In real work, speed depends on pass count, resolution, media, ink, ICC profile, drying/curing and the customer’s quality requirements. For sign production, stable production-mode speed is more important than maximum speed alone. Sometimes a slower mode gives visibly better quality, especially for indoor graphics, wallpaper, small text and images viewed from a short distance.

An ICC profile connects the printer, ink, media and print mode. Without a correct profile, the same artwork can look different on vinyl, banner, backlit, PET or indoor media. Colours may shift, grey may become tinted and dark areas may lose detail. For professional printing, profiles should be built for the customer’s real materials. This is especially important for brand advertising, photo studios, interior projects and customers where deviation from corporate colour is not acceptable.

Yes. Installation, commissioning and operator training are free of charge. The equipment comes with a 1-year warranty that includes a service package. We provide service and consumables in Chișinău to keep production downtime to a minimum.

Yes, ICC colour profiles are included free of charge. We build them individually for your media, inks and jobs so that printed colour matches your artwork precisely.

The main consumables are inks, cleaning fluids, wiping/capping parts, filters and spare printheads. We keep key items in stock in Chișinău, so replacement and maintenance are fast.
